A concealed duct mini split hides the air handler above the ceiling or inside a closet or soffit, feeding short duct runs to a handful of registers so no indoor unit shows on the wall. It's the right call for finished rooms, additions, or any space where you want even airflow across multiple registers instead of one visible head. Before you call a contractor, get a Manual J load calculation and match the handler's static pressure rating to your duct layout. Mechanical prep is fair game for a handy homeowner, but the refrigerant and electrical connections belong to a licensed technician.
TL;DR:
- Proper sizing of a concealed duct mini split relies on a Manual J load calculation, not just square footage, to ensure correct capacity and avoid short-cycling or underperformance.
- High static pressure handlers are necessary for multiple registers or longer duct runs, and duct material choice is crucial for noise reduction and efficiency, especially with rigid or semi-rigid ducts.
- Installation requires careful planning, especially for refrigerant, electrical, and drainage slope, with certification needed for refrigerant work and licensed electricians for electrical connections.
- Maintenance involves regular filter checks and coil cleaning, while refrigerant and electrical inspections should be performed by professionals to maintain efficiency and safety.
- Costs depend heavily on access difficulty, register count, static rating, and permit requirements, with single-day installation for a one-zone system and longer timelines for multi-zone setups.
Table of Contents
- What Is a Concealed Duct Mini Split, and What Are Your Options?
- How Do You Size a Concealed Duct Mini Split?
- What Does Installation Involve, and What Can You Do Yourself?
- How Does Static Pressure Affect Duct Runs and Register Count?
- What Does It Cost, and How Long Does Installation Take?
- What Maintenance Does a Concealed System Need?
- How Loud Is a Concealed Duct Mini Split?
- Do Concealed Systems Work With Smart Thermostats?
- What Installation Problems Come Up Most Often?
- Which Duct Materials and Insulation Work Best?
- When Does a Concealed Duct System Actually Make Sense?
- Get a Custom Quote From Maine's Cold-Climate Heat Pump Specialists
- Sources
- FAQ
What Is a Concealed Duct Mini Split, and What Are Your Options?
A concealed duct mini split is a ducted indoor air handler, tucked out of sight, connected to an outdoor condenser and distributing conditioned air through short, insulated ducts to ceiling or wall registers. Unlike a wall-mounted head, nothing is visible in the room except the grilles. The duct design behind these systems keeps runs short and inside the conditioned envelope, which cuts the duct losses you'd see in a long attic run on a central system.
Indoor handlers come in two orientations. Horizontal units mount flat above a ceiling or in a soffit, and they're the standard choice for retrofits where you're threading ductwork through joist bays. Vertical units stand upright in a closet or utility chase, which works well when you're feeding a small addition or a single problem room and don't want to open up a ceiling at all.
The number that actually determines what your ductwork can do is the static pressure rating, not the tonnage:
- Low static handlers support one register and a short run, typically for a single room or small zone.
- Mid static handlers handle two to three registers over a moderate run, the sweet spot for a bedroom wing or a finished basement.
- High static handlers push air through longer runs or more branches, suited to multi-register layouts or a full-floor retrofit.
Single-zone concealed systems pair one indoor handler with one outdoor condenser, which keeps cost and complexity down but only covers one duct network. Multi-zone systems put several handlers, sometimes a mix of concealed and wall-mounted, on one larger condenser, letting you run independent duct networks off a single outdoor unit at the tradeoff of a bigger upfront system and more careful capacity balancing.
On materials, short insulated flex duct is fine for gentle bends near the handler, but any run longer than a few feet benefits from rigid or semi-rigid duct to cut turbulence and noise. Grille style and access panel placement matter more than most buyers expect. A poorly placed access panel means a tech has to cut drywall every time the coil needs a look. For efficiency, look for SEER2 ratings in the 16 and up range, with premium inverter-compressor units reaching into the low twenties. The inverter compressor is what keeps the system running quietly at partial load instead of cycling hard on and off.
How Do You Size a Concealed Duct Mini Split?
Sizing starts with a Manual J load calculation, not a rule of thumb pulled off a box label. Manual J accounts for your home's insulation, window area, orientation, ceiling height, and air leakage to produce a BTU/hour heating and cooling load specific to that room or zone. Skip it and you risk an oversized system that short-cycles and never dehumidifies properly, or an undersized one that can't keep up on the coldest days.

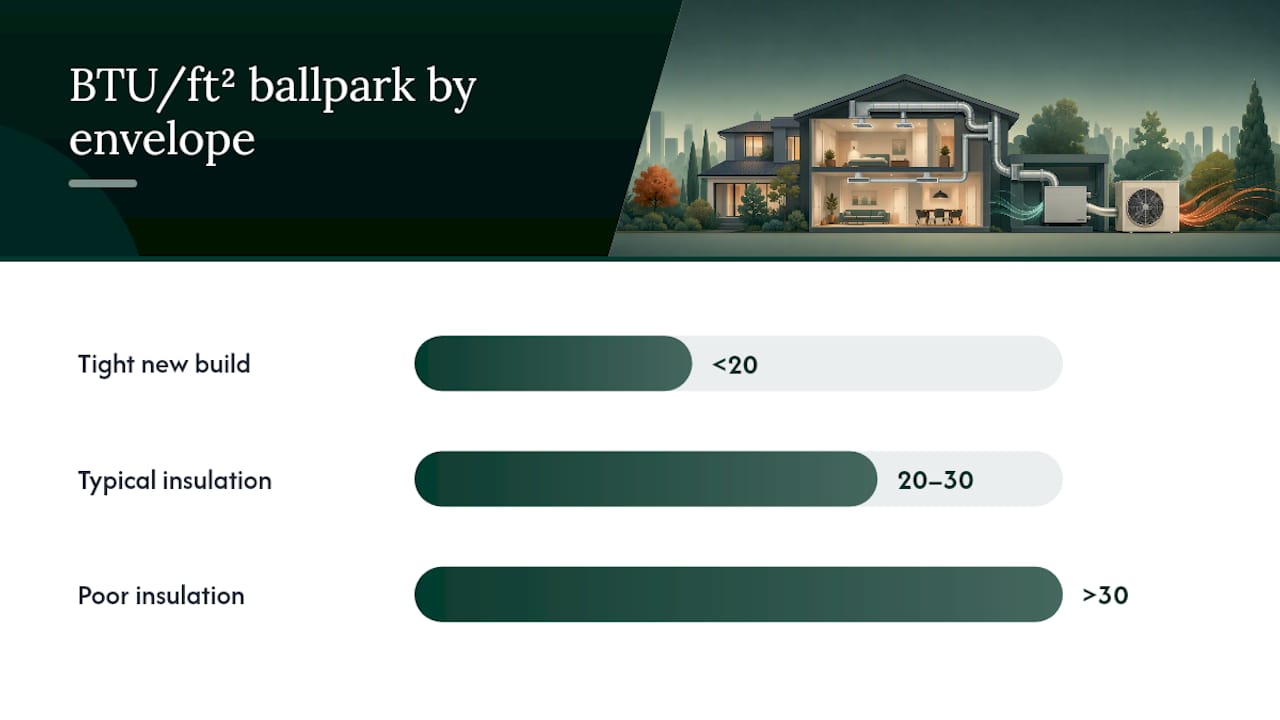

A quick sanity check while you wait on a proper calculation: 20 to 30 BTU per square foot is a common ballpark for reasonably insulated space. That range is only a gut check, not a substitute for Manual J. A poorly insulated older addition can blow past 30 BTU/ft², while a tight, well-sealed new build might sit under 20.
Once you have the Manual J number, here's how it becomes an actual system spec:
- Convert the total BTU load to tonnage (12,000 BTU equals one ton) to identify the condenser capacity range you need.
- Match static pressure to your duct plan. A single register in a small addition points to a low static handler; three or more registers across a longer run point to mid or high static.
- Balance zones in a multi-zone system so no single handler is asked to carry more than its rated share of the condenser's total capacity. Undersizing one zone to oversize another causes uneven comfort room to room.
- Confirm minimum and maximum operating capacity, since inverter-driven systems modulate output and you want the low end to match mild-day loads without short-cycling.
- Cross-check the manufacturer's static pressure chart against your planned duct length and register count before finalizing the model number.
Before you request quotes, hand every installer the same packet: room dimensions, insulation type and R-value where known, window count and orientation, ceiling height, and how many registers you want. Two contractors working from the same numbers will give you quotes you can actually compare. A quote based only on square footage is a guess, not a spec, and it's worth reviewing HITA's installation planning guidance to see what a properly documented pre-quote packet looks like.
What Does Installation Involve, and What Can You Do Yourself?
Installing a concealed duct mini split runs through nine stages, and the line between "homeowner job" and "certified technician job" falls in a predictable place.
- Plan the layout, confirming handler location, duct routing, and register placement against the Manual J and static rating.
- Mount the indoor handler in the ceiling cavity, soffit, or closet per the manufacturer's clearance specs.
- Cut the wall penetration for the line set, drain, and communication wiring.
- Set the outdoor condenser pad, leveled and positioned for airflow clearance and drainage.
- Route the duct network to each register, keeping runs short and properly sealed.
- Land the electrical circuit, a dedicated 208/230V line with a fused disconnect near the outdoor unit.
- Connect the refrigerant line set between indoor and outdoor units.
- Evacuate and charge the system, pulling a vacuum to remove moisture and air before charging.
- Commission and test, checking static pressure, temperature split, and drainage under running conditions.
Steps one through five and part of six are fair territory for a capable homeowner or a general contractor. Steps seven and eight are not. Under EPA Section 608, opening or connecting a refrigerant circuit, even a pre-charged line set, requires certification. That rule exists because refrigerant is a regulated substance and improper handling both voids equipment warranties and violates federal law.
Electrical work follows a similar logic. Most jurisdictions want a licensed electrician on the dedicated circuit and disconnect, particularly for anything tied into a home's main panel. A homeowner can reasonably complete the mechanical prep in four to eight hours, but the vacuum and charge are precision steps that determine whether the system runs for fifteen years or fails in two.
One detail is easy to overlook and expensive to ignore: the wall penetration needs a slight downward slope, about 0.2 to 0.275 inches, from indoor to outdoor so condensate drains by gravity instead of pooling inside the wall cavity.
Pro Tip: Take dated photos of every open wall cavity, duct run, and electrical rough-in before the drywall goes back up. When a tech needs to troubleshoot a static pressure problem two years later, those photos save an hour of guessing where the ductwork actually runs.
Get permits pulled before work starts, confirm your contractor is licensed for both HVAC and electrical (or is coordinating with a licensed electrician), and have your Manual J paperwork on hand for inspection.
How Does Static Pressure Affect Duct Runs and Register Count?
Static pressure measures the resistance airflow meets moving through your ductwork, and it's a more common cause of poor concealed duct performance than undersized refrigerant capacity. A system can have the right tonnage and still perform badly if the static rating doesn't match the duct layout.
The practical mapping looks like this:
- Low static: one register, a short run under roughly ten feet, minimal bends.
- Mid static: two to three registers, moderate run lengths, a bend or two.
- High static: four or more registers, longer runs, or multiple branches off one handler.
Return air placement deserves the same attention as supply registers. Concealed systems need both a supply and a return path, and the return typically houses the filter. Put it somewhere you can actually reach without pulling a ladder into a closet every time the filter needs changing.
The most common layout error is adding registers after the fact without upgrading to a higher static rated handler. This shows up as weak airflow at the far register and a system that runs longer than it should to hit setpoint. The fix is deciding your final register count before ordering equipment, not after the ductwork is closed up.
What Does It Cost, and How Long Does Installation Take?
Concealed single-zone systems typically cost more installed than a comparable wall-mounted head, and multi-zone concealed systems cost more still, because ductwork and concealment labor add real time and material that a wall head never requires. Expect price to scale mainly with register count, static rating, and how hard the space is to access.
The biggest cost swings come from a short list of factors:
- Access difficulty: an open basement ceiling is far cheaper to work in than a finished attic with no crawl space.
- Register count: each additional supply point adds duct material and labor.
- Static rating: higher static handlers and their matching ductwork cost more than a simple low static single-register setup.
- Electrical upgrades: a panel without spare capacity means an electrician's visit before the HVAC crew even shows up.
- Permit fees: these vary by town and are worth confirming early, since some jurisdictions charge separately for HVAC and electrical permits.
On timeline, a single-zone concealed install typically wraps in a single day once the site is ready. Multi-zone systems, especially those with several concealed handlers, usually run multiple days, and anything requiring an electrical panel upgrade or permit inspection adds time on top of that.
The only way to get quotes you can actually compare is to insist every contractor bases their number on a Manual J calculation and an in-person site visit. A phone-quote based on square footage alone tells you nothing reliable about what you'll pay.
What Maintenance Does a Concealed System Need?
Homeowners can handle the basics: check and clean or replace filters on a regular schedule, watch the visible condensate line for slow drainage or moisture around the access panel, and vacuum dust from any reachable grille.
The tasks worth hiring out are coil cleaning, drain line flushing at the handler itself, refrigerant pressure checks, and electrical connection inspections. These catch efficiency loss and safety issues long before they become visible problems, and they're exactly the work a preventive maintenance visit is built to cover.
Some local providers have installed large numbers of heat pumps across Maine, with systems sized from detailed heat-loss calculations rather than square-footage estimates, according to data cited by Efficiency Maine. That sizing discipline matters even more for concealed duct systems, where static pressure and register count leave less room for error than a simple wall head.
An annual visit under a plan like the Maine Heat Pump Care Plan should include a full filter and coil inspection, drain flush, electrical safety check, and a pressure reading compared against the system's baseline from installation. Ask any provider what's actually included before signing, since "maintenance plan" means different things depending on who's selling it.
How Loud Is a Concealed Duct Mini Split?
Concealed units run quieter at the room level than most people expect, mainly because the noisiest components, the compressor and outdoor fan, sit outside entirely. Indoors, what you hear is air moving through ducts and registers, plus a faint hum from the blower motor above the ceiling.
Inverter-driven blowers help here too. Instead of cycling on at full blast and shutting off, they ramp gradually and spend most of their runtime at partial speed, which is noticeably quieter than a single-speed system kicking on and off.
Duct design affects perceived noise as much as the equipment itself. Undersized ductwork forced to carry more air than its static rating allows creates a whistling or rushing sound at the registers, which is really an airflow problem masquerading as a noise complaint. Sharp 90 degree bends right at the handler outlet do the same thing. Where noise is a real concern, such as a bedroom or home office, ask about flexible duct connectors at the handler to dampen vibration transfer into the ceiling structure, and specify slightly larger register openings to slow air velocity without cutting total airflow.
If a concealed system installed a year ago has gotten louder, that's usually a dirty filter or blower wheel restricting airflow, not a sign the unit is failing. It's one of the easier fixes a maintenance visit catches early.
Do Concealed Systems Work With Smart Thermostats?
Most concealed duct mini split handlers support a wired wall controller as standard, and a growing number offer a smart thermostat interface or a manufacturer app for zone control from a phone. Compatibility depends on the specific brand and model line, since not every concealed handler accepts a third-party thermostat directly.
For multi-zone systems, the more relevant question is whether each zone gets independent scheduling or whether the whole system runs off one shared controller. Independent zone control is what actually delivers on the promise of a ducted mini split, letting a bedroom wing run a different schedule than a home office without touching the whole house.
Before assuming a specific smart thermostat will work, confirm compatibility with your installer at the quote stage, not after the equipment is already ordered. Some manufacturer-specific control boards don't accept generic thermostats without an added interface module, and that's a detail worth nailing down in writing.
What Installation Problems Come Up Most Often?
A handful of issues account for most concealed duct callbacks. Airflow imbalance across registers tops the list, usually traced back to a static rating that didn't match the final duct layout, or a return path that got squeezed into too small a space during framing.
Condensate drainage problems come in second, almost always from a wall penetration slope that's off from the recommended 0.2 to 0.275 inch range. Get that slope wrong and water pools instead of draining, which shows up months later as a ceiling stain nobody can explain.
Electrical circuit sizing catches people out too. A dedicated 208/230V circuit sized for the wrong condenser model, ordered before final equipment selection, forces a rework once the actual unit shows up. That's a strong argument for finalizing your equipment spec before scheduling the electrician.
Access panel placement causes headaches after the fact rather than during install. Skip planning for panel location and the first coil cleaning means cutting into finished drywall. The fix for nearly all of these is sequencing: lock in the Manual J numbers and static rating before framing closes up, not after.
Which Duct Materials and Insulation Work Best?

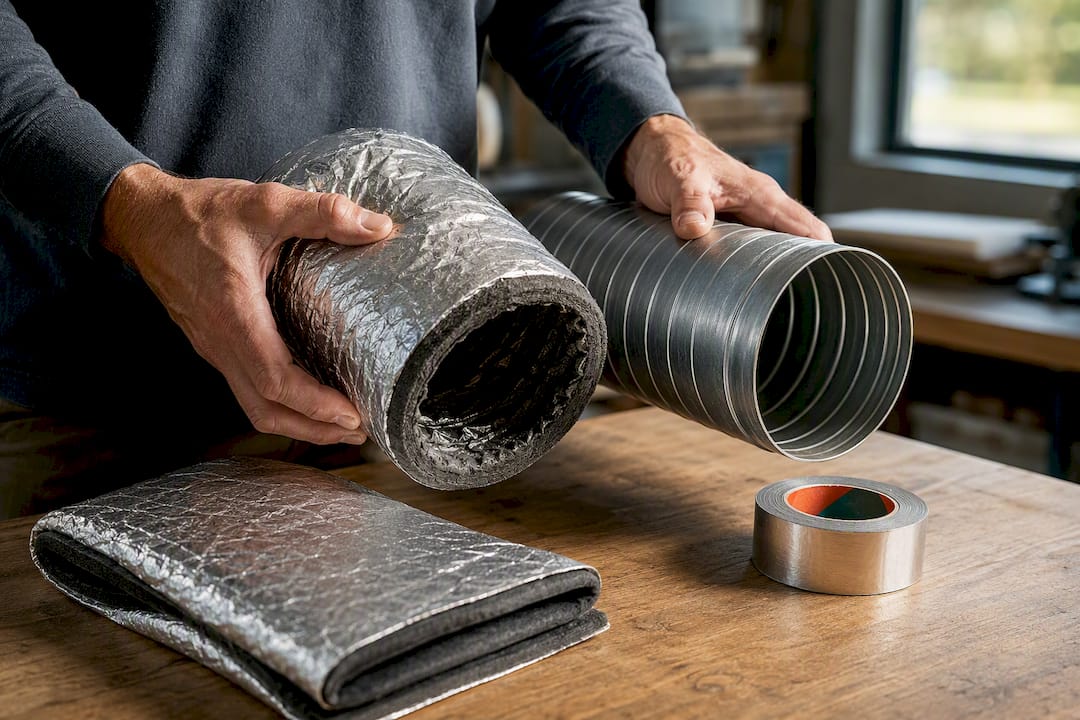

Short, straight runs near the handler can use insulated flexible duct without much performance penalty, since flex is fast to install and forgiving around obstacles. Anything longer than a few feet, or any run with multiple bends, does better in rigid or semi-rigid metal duct, which holds its shape and doesn't create the internal turbulence that flex duct introduces at bends.
Insulation on every duct run matters for two reasons: it stops conditioned air from losing temperature before it reaches the register, and it prevents condensation from forming on duct exteriors in humid attic or crawl space conditions. R-6 or R-8 insulated duct wrap is standard for runs passing through unconditioned space; runs kept entirely within conditioned space, which is the whole point of a concealed system's short-run design, need less insulation but still benefit from some wrap to cut noise transmission.
Sealing matters as much as material choice. Every joint, whether flex-to-boot or rigid duct seam, needs mastic sealant or foil tape rated for duct use, not standard duct tape, which fails within a few years under thermal cycling. A well-sealed, well-insulated short run is what lets a concealed system deliver on the quiet, efficient performance the design promises in the first place.
When Does a Concealed Duct System Actually Make Sense?
Concealed duct mini splits earn their higher price in finished rooms, additions, and any space where a visible wall head would be a dealbreaker. They're also the right call once you need more than one or two registers feeding a single zone evenly.
They make less sense on a tight budget, in spaces with genuinely no service access above the ceiling, or in a home with poor insulation that a Manual J will likely flag for bigger structural fixes first. Before calling a contractor, have your room dimensions, insulation notes, and rough register count ready. That short list turns a vague conversation into a real quote.
— John
Get a Custom Quote From Maine's Cold-Climate Heat Pump Specialists
If you've read this far, you already know a concealed duct mini split lives or dies on accurate sizing, the right static rating, and clean handoffs between mechanical prep and certified refrigerant work. That's exactly where Hitamaine focuses, with every system designed from an actual heat-loss calculation instead of a square-footage guess, and equipment selected to keep working reliably even when Maine winters drop to −22°F or colder.
When you reach out, expect a site assessment that looks at your duct layout, access points, and existing electrical capacity, followed by a Manual J calculation and a clear quote broken down by equipment, ductwork, and labor. If you're weighing a new install against a replacement, Hitamaine's installation planning page walks through what that assessment covers before you commit to anything. And since a concealed system's performance depends on staying maintained, ask about the Maine Heat Pump Care Plan at $319 per year or the Annual Cleaning Plan at $219 per year when you get your quote. Request your site assessment through Hitamaine's services page to get a firm number instead of a guess.
